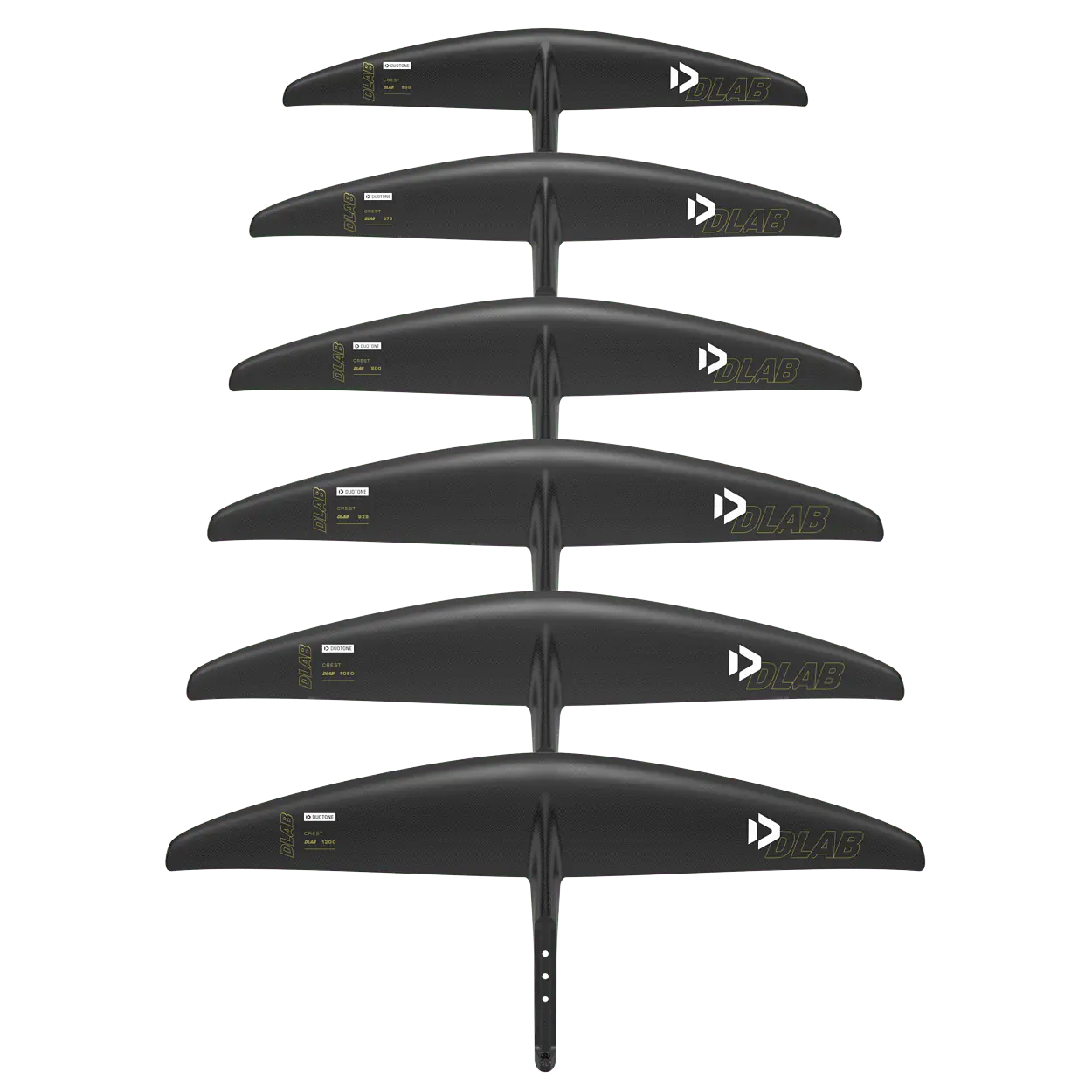

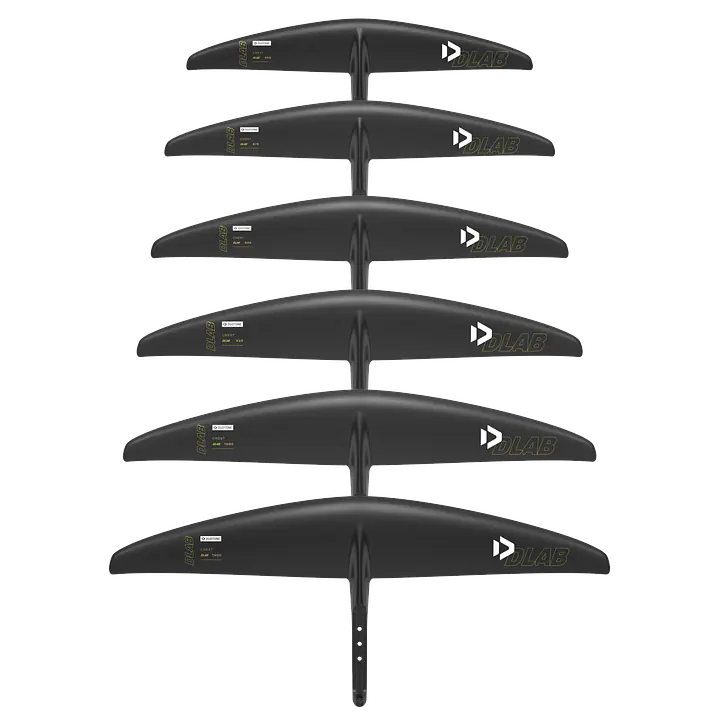

Duotone Front Wing Crest D/LAB 2026 — Prone / Freefly / Wake / Foil-Assist
The Crest D/LAB is Duotone’s high-performance front wing for riders who want instant response, fluid carving and effortless wave connection — from wind swell to mid-size surf. The moustache-style outline with upturned tips keeps turns controlled, while the low-drag D/LAB construction reduces visible hardware for a clean, efficient feel and look.
- Instant response & carve — turns on command with intuitive feedback.
- Effortless wave connection — excellent glide and pumping, with forgiving stall behaviour.
- Fluid re-entry — recovers smoothly from tip breaches, airs and foil slides.
- D/LAB low-drag build — minimal exposed screws for sleek hydrodynamics.
- Wide speed window — comfortable across smaller to larger surf.
- Full tuning ecosystem — compatible with all D/LAB Tails, S & PX stabilizers, and the new Monobloc tails.
Who it’s for
Riders progressing to advanced carving in prone foiling, wing free-fly/surf, wake and foil-assist. Choose size by rider weight, wave energy and preferred feel (see chart).
Item-No.: 42260-3848 | Sizes: 675 / 800 / 925 / 1050
Main features
- Speed range: stable across a broad range — from playful peelers to steeper walls.
- Connectivity: pumps efficiently to link sections and maintain flow down the line.
- Curvature design: moustache outline with upturned tips = agility + control in the pocket.
- Compatibility: D/LAB Tails, S & PX stabilizers, and Monobloc tails.
Sizes & Technical Specs
| Size | Surface (cm² / in²) | Span (cm / in) | Aspect Ratio | Weight* (kg) | Recommended Stabilizer / Tail (Wing & Assist) | Recommended Stabilizer / Tail (Prone) | Hardware | Torque |
|---|---|---|---|---|---|---|---|---|
| 675 | 675 / 104.6 | 79 / 31.1 | 9.3 | 0.77 | PX 160 • MB-PX 145 | S 160 • MB-S 160 | M6×25 (tail) • 3×M8×50 (mast) | Tail 10 Nm • Mast 15 Nm |
| 800 | 800 / 124.0 | 85 / 33.5 | 9.0 | 0.81 | PX 160 • MB-PX 145 | S 160 • MB-S 160 | M6×25 • 3×M8×50 | 10 Nm • 15 Nm |
| 925 | 925 / 143.4 | 90 / 35.4 | 8.9 | 0.94 | PX 175 • MB-PX 160 | S 160 • MB-S 160 | M6×25 • 3×M8×50 | 10 Nm • 15 Nm |
| 1050 | 1050 / 162.8 | 96 / 37.8 | 8.8 | 0.97 | PX 175 • MB-PX 160 | S 160 • MB-S 160 | M6×25 • 3×M8×50 | 10 Nm • 15 Nm |
*Weight without screws. Manufacturing tolerance ±6% possible.
Size guidance
- 675: Light riders / powerful waves / highest top-end and most reactive carving.
- 800: Agile all-rounder for prone or wing free-surf in consistent swell.
- 925: Versatile daily driver — broad speed window and easy connection between waves.
- 1050: Early lift, glide and pump efficiency for softer waves or heavier riders.
Compatibility
Fits Duotone D/LAB ecosystem: all D/LAB tails, S & PX stabilizers, plus the new Monobloc tails. See recommended pairings in the table above.
What’s in the box
- Front Wing Crest D/LAB (chosen size)
- Mounting screws for tail and mast interface (see specs)
- Protective sleeve / packaging
Care & setup notes
- Use recommended screw sizes and torque values (tail 10 Nm, mast 15 Nm).
- Rinse with fresh water after each session; avoid prolonged UV exposure when not in use.
- Check fasteners regularly; re-torque after the first rides.
