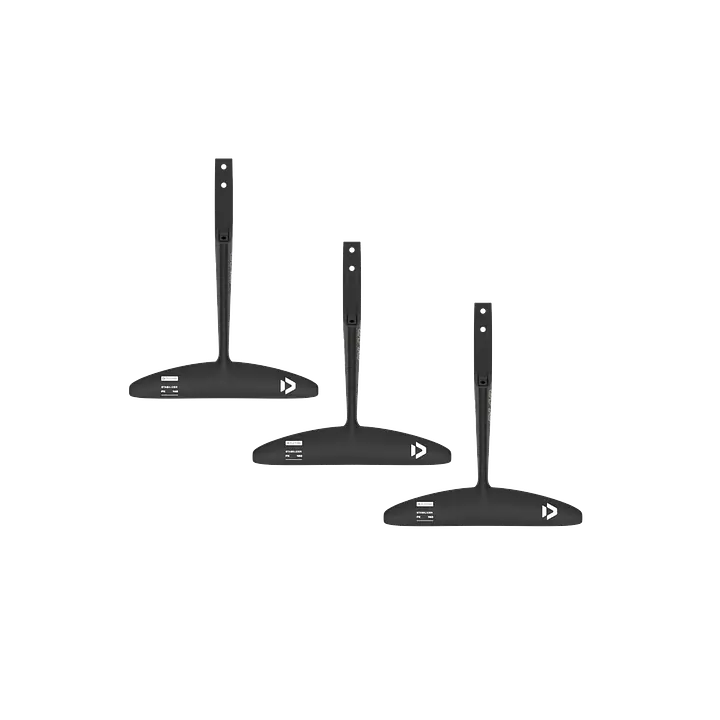

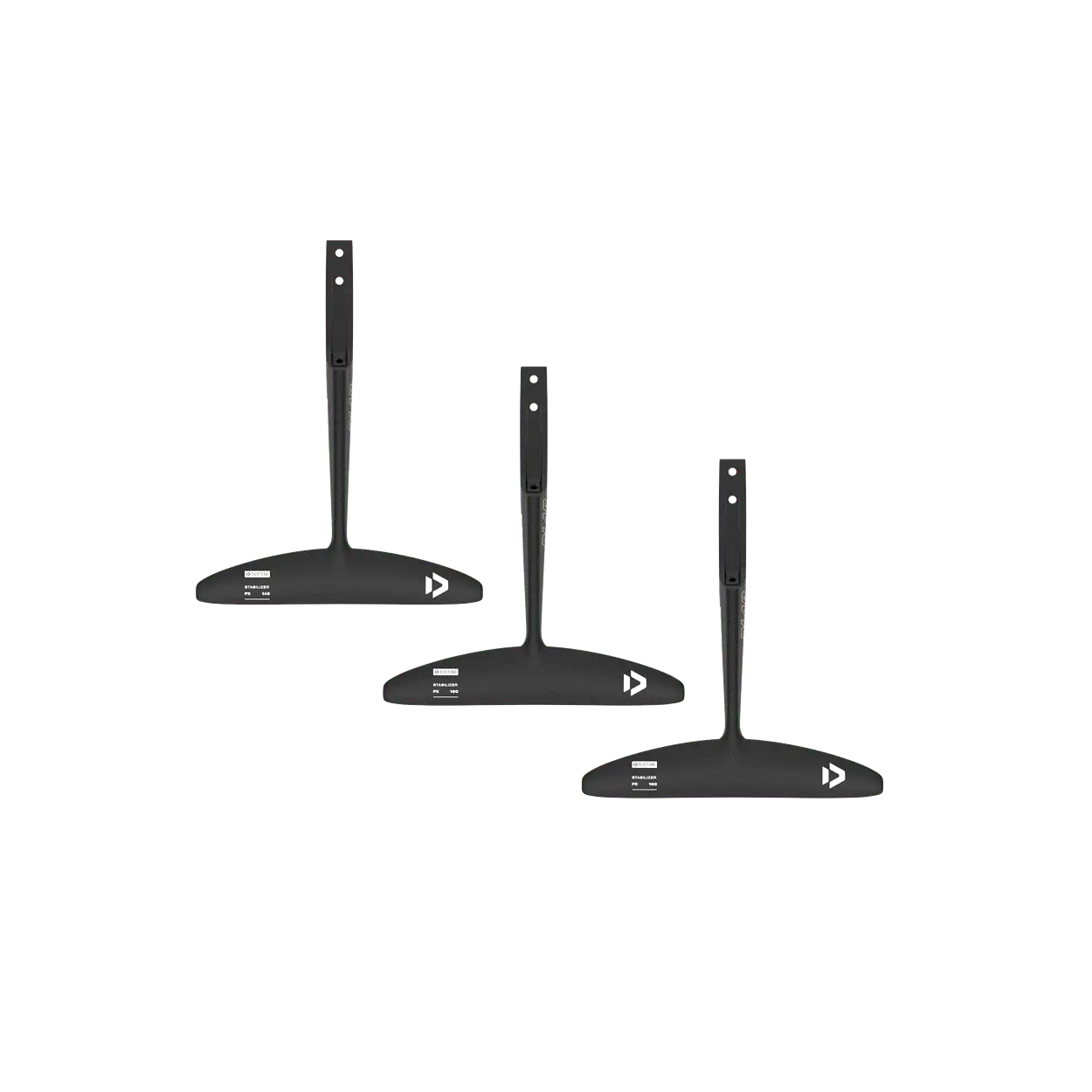

Duotone Monobloc Tail PX D/LAB 2026 — One-piece PX tail + stabilizer for maximum efficiency
The Monobloc Tail PX D/LAB is a one-piece carbon tail with integrated stabilizer. It reduces drag to an absolute minimum and delivers a fluid, precise feel at speed. Tail lengths are size-specific to keep your setup balanced and agile across different front wings.
- Lowest drag in the range — one-piece PX tail + stab for clean, efficient flow.
- Fluid, precise turning — direct response with smooth re-entry at higher speeds.
- Size down logic — PX160 offers lift comparable to a screw-on PX175 for tighter control.
- Tail-length matched — each size has its own fuselage length for optimal balance.
- D/LAB carbon layup — HM/IM fiber mix for stiffness, tuned flex and durability.
- Perfect pairings — works brilliantly with Carve 3.0 D/LAB, Crest D/LAB and Glide D/LAB fronts.
Who it’s for
Riders aiming for premium efficiency and control in wing, prone or foil-assist. If you value high-speed stability with lively, accurate turns, Monobloc PX is the tail to unlock your D/LAB front wings.
Item-No.: 42260-3850 | Sizes: PX160 (37 cm) / PX145 (40 cm)
Sizes & Technical Specs
| Size | Surface (cm² / in²) | Tail Length (cm) | Eq. Fuselage Length (≈) | Screw to D/LAB Front Wing | Rec. Torque | Recommended Front Wings |
|---|---|---|---|---|---|---|
| PX160 | 160 / 24.8 | 37 | ≈ 60 cm | M6 × 25 | 10 Nm | Carve 3.0 D/LAB • Crest D/LAB • Glide D/LAB |
| PX145 | 145 / 22.5 | 40 | ≈ 63 cm | M6 × 25 | 10 Nm | Carve 3.0 D/LAB • Crest D/LAB • Glide D/LAB |
*PX160 provides lift comparable to a screw-on PX175 but with less drag for a more agile, controlled feel.
Size guidance
- PX160 (37 cm / ≈60 fuselage): more reactive, tighter carves; great with medium to larger front wings.
- PX145 (40 cm / ≈63 fuselage): balanced glide and control; ideal with small to medium front wings.
Compatibility
Designed for the D/LAB ecosystem; bolts directly to D/LAB front wings (M6×25). Best matches: Carve 3.0 D/LAB, Crest D/LAB, Glide D/LAB.
What’s in the box
- Monobloc Tail PX D/LAB (chosen size)
- Mounting hardware for D/LAB front wing (see spec)
- Protective sleeve / packaging
Care & setup notes
- Use the specified M6×25 screws and 10 Nm torque.
- Rinse with fresh water after sessions; avoid long UV exposure when stored.
- Re-check bolt torque after the first rides and periodically thereafter.
